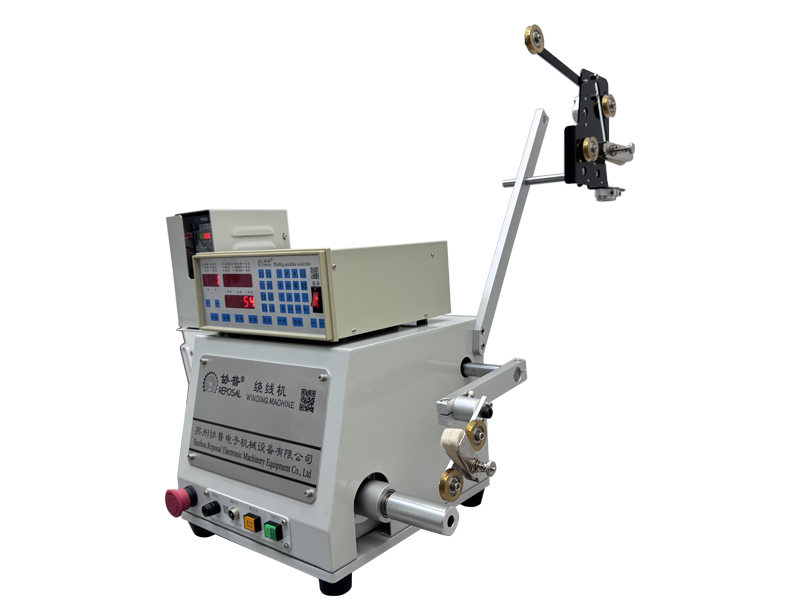

CNC Winding machine SP-A103B-M

winding machine Features:

      Widely used in winding power transformers, high-frequency inductors, filters, general small parallel coils and other products.

　　The control part of the winding machine adopts the special controller of the precision winding machine, and cooperates with high-quality motors, bearings, frequency converters, etc., so that the quality is guaranteed.

The winding machine's application function design is mature, the logic is clear, the winding function is complete, it has various auxiliary functions during the winding process, and it is simple to operate, it will not be erased when the power is turned off, there is a manual cable counting follow function, and the cable ends are automatically Deceleration function, the speed of the wire rod can be set.

　　According to the specific requirements of the customer, the controller function can be designed to expand the input and output points (paid service).

　　With power-off memory function, the power is suddenly cut off during the winding process, and the current state, parameters can be recorded and saved. After the power is turned on, the product will continue to be wound to reduce the waste of raw materials and working hours.

　　Single-chip single-chip microprocessor design. Powerful, small size, strong anti-interference ability.

　　 Winding process data can save 999 groups, each group of process data can set different starting point, width, wire diameter, wire direction and winding direction, and cross-slot winding action.

winding machine Specifications: SP-A103B-M

 Model: SP-A103B-M

Power Supply: 220V 50Hz

Motor: Induction Motor, 370W

Coupling Length: 91 mm

Traverse Unit: V-groove Copper Wheel

Applicable Coils: General Coils

Tensioner: Standard Tensioner

Taiwan TECO Inverter: √

Braking Resistor: √

Independent Shaft System: √

Electromagnetic Brake: √

Hexagon Wrench: √

Foot Switch: √

National Standard Power Cord: √

Rated Speed: 50-2800 rpm

Traverse Stroke: 140 mm

Swing Diameter: 200 mm

Total Power: 470W

Torque: 1.3 N·m

Applicable Wire Diameter: 0.03-1.6 mm

Storage Groups: 1000 sets

Net Weight: 33.4 kg

Gross Weight: 46.9 kg

Outer Package Dimension: 55×45×65 cm
